SIDE AIR BAG MODULE REMOVAL/INSTALLATION

Warning

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the air bag module. (See SERVICE WARNINGS.)

Warning

• If the side air bag module is installed with debris in the seat back, the foreign material may be scattered when the side air bag module operates (deploys), causing injury. Verify that there is no foreign material in the seat back before installing the side air bag module.

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Turn the ignition switch to ON position.

4. Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.

• If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic.

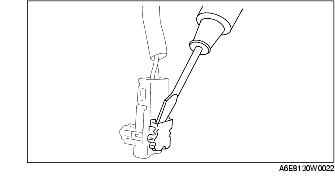

Connector Removal Note

1. Using a flathead screwdriver, pry out the connector's stopper plate.

2. Disconnect the connector.
