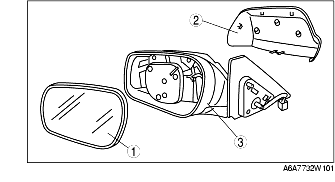

1. Disassemble in the order indicated in the table.
|
1
|
Outside mirror glass
|
|
2
|
Cover
(See Cover Disassembly Note)
|
|
3
|
Outside mirror holder
|
2. Assemble in the reverse order of disassembly.

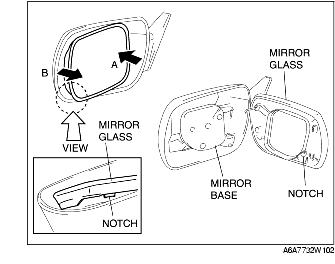

1. Press area A of the glass so that area B moves toward you.
2. Insert a screwdriver into the notch and remove the glass from the mirror base.

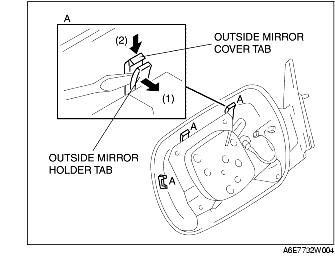

1. Pull off the mirror holder tab with a screwdriver and press the mirror cover tab downward.

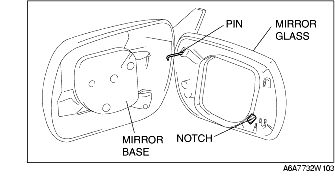

1. Press the mirror into the base so that the pin does not dislodge.
