RECLINER MOTOR REMOVAL/INSTALLATION


id091300804000

1. Disconnect the negative battery cable.

2. Remove the driver's side front seat. (See FRONT SEAT REMOVAL/INSTALLATION)

3. Remove the front cover (No.1, No.2) and side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY)

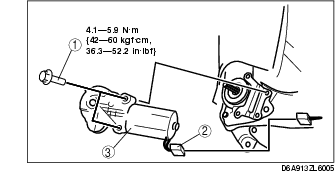

4. Remove in the order indicated in the table.

1
Bolt
2
Connector
3
Recliner motor

5. Install in the reverse order of removal.
