1. Disconnect the negative battery cable and wait for more than 1 minute.
2. Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.
|

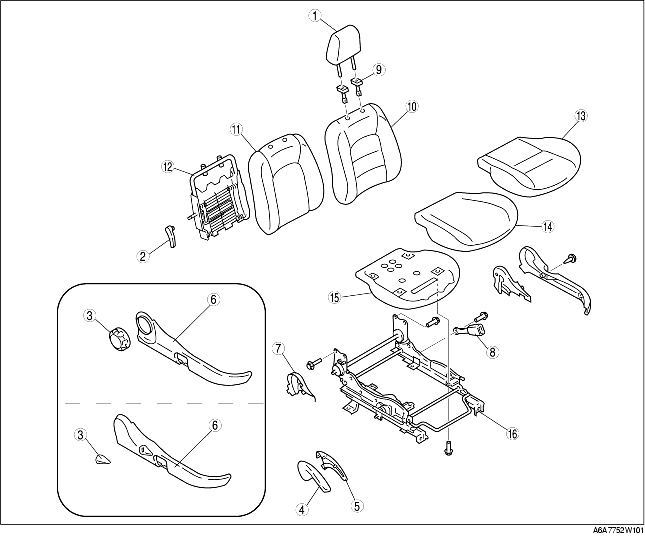

1
|
Headrest
|
|
2
|
Lumber support lever
|
|
3
|
Recliner dial (dial type)
Recliner lever (lever type)
|
|
4
|
Lift lever outer
|
|
5
|
Lift lever inner
|
|
6
|
Side cover
(See Side cover disassembly note.)
|
|
7
|
Reverce cover
|
|
8
|
Front buckle
|
|
9
|
Pole guide
|
|
10
|
Seat back trim
|
|
11
|
Seat back pad
|
|
12
|
Seat back frame
|
|
13
|
Seat cushion trim
|
|
14
|
Seat cushion pad
|
|
15
|
Seat cushion frame
|
|
16
|
Slide adjuster
|
|

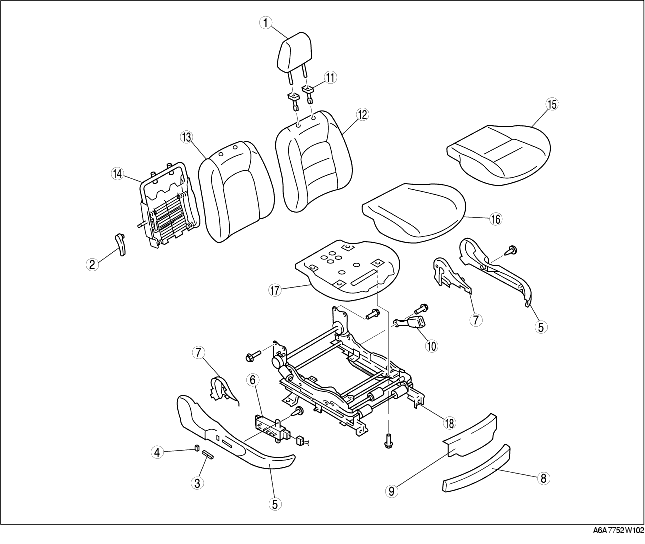

1
|
Headrest
|
|
2
|
Lumber support lever
|
|
3
|
Slider and lifter switch knob
|
|
4
|
Recliner switch knob
|
|
5
|
Side cover
(See Side cover disassembly note.)
|
|
6
|
Power seat switch
|
|
7
|
Reverce cover
|
|
8
|
Front cover No. 1
|
|
9
|
Front cover No. 2
|
|
10
|
Front buckle
|
|
11
|
Pole guide
|
|
12
|
Seat back trim
|
|
13
|
Seat back pad
|
|
14
|
Seat back frame
|
|
15
|
Seat cushion trim
|
|
16
|
Seat cushion pad
|
|
17
|
Seat cushion frame
|
|
18
|
Slide adjuster
|
|

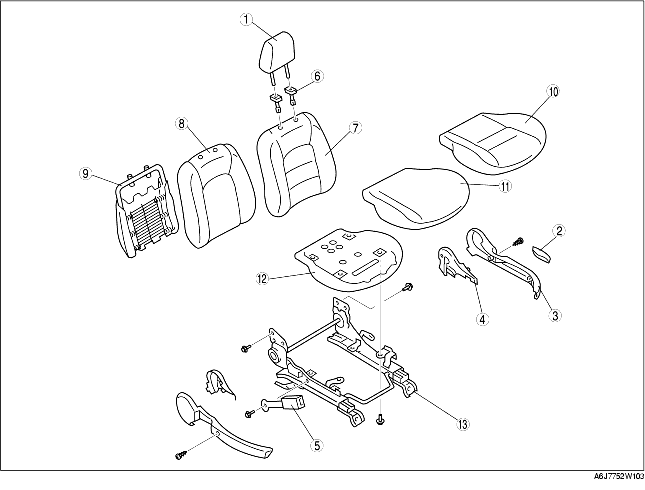

1
|
Headrest
|
|
2
|
Recliner lever
|
|
3
|
Side cover
(See Side cover disassembly note.)
|
|
4
|
Reverse cover
|
|
5
|
Front buckle
|
|
6
|
Pole guide
|
|
7
|
Seat back trim
|
|
8
|
Seat back pad
|
|
9
|
Seat back frame
|
|
10
|
Seat cushion trim
|
|
11
|
Seat cushion pad
|
|
12
|
Seat cushion frame
|
|
13
|
Slide adjuster
|

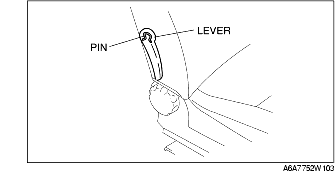

1. Remove the pin from the lumber support lever installation part with rag.

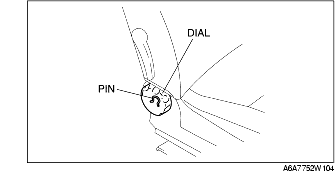

1. Remove the pin from the recliner dial installation part with rag.

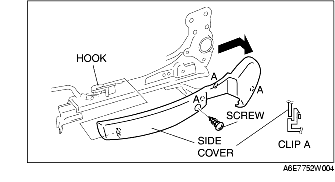

1. Remove the screws.
2. Disengage the clips.
3. Lift the side cover up in the direction of the arrow, then unhook it from slide adjuster.
