CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

id091800466300

5HB

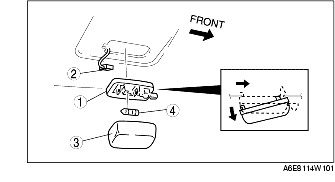

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.


1	Cargo compartment light
2	Connector
3	Lens
4	Cargo compartment light bulb

3. Install in the reverse order of removal.

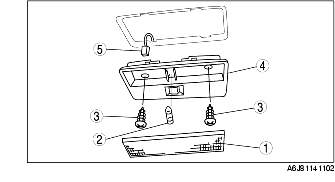

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.


1	Lens (SeeLens removal note)
2	Cargo compartment light bulb
3	Screw
4	Cargo compartment light
5	Connector

3. Install in the reverse order of removal.

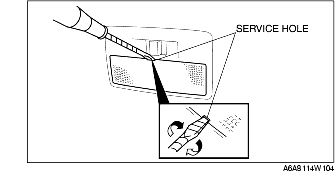

1. Insert a tape-wrapped flathead screwdriver into the service hole.

2. Twist the flathead screwdriver as indicated by the arrow to remove the lens.
