FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800468500

Note
• Front fog light (TYPE A) is built in the front combination light.

Type B

1. Disconnect the negative battery cable.

2. Remove the mud guard.

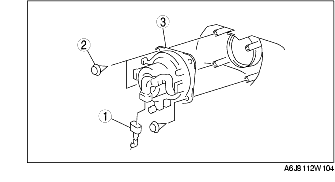

3. Remove in the order indicated in the table.

1
Connector
2
Screw
3
Front fog light

4. Install in the reverse order of removal.

5. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
