HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

4SD

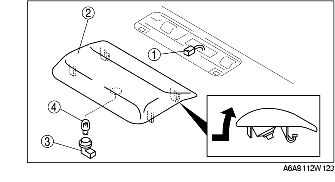

In-vehicle-type

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.


1	Connector
2	High-mount brake light
3	Socket
4	High-mount brake light bulb

3. Install in the reverse order of removal.

Rear spoiler type

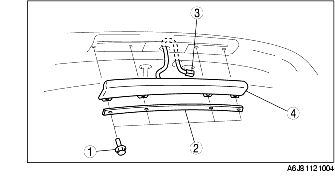

1. Disconnect the negative battery cable.

2. Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION)

3. Remove in the order indicated in the table.


1	Bolt
2	Cover
2	High-mount brake light (See High-mount brake light removal note)

4. Install in the reverse order of removal.

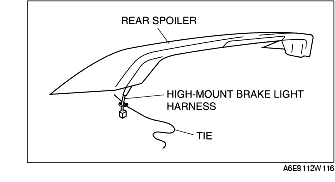

High-mount brake light removal note

1. Tie a string to the end of the high-mount brake light connector beforehand so that the connector can be passed easily through the rear spoiler during installation.

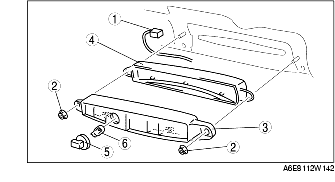

5HB

1. Disconnect the negative battery cable.

2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION)

3. Remove in the order indicated in the table.


1	Connector
2	Nut
3	High-mount brake light
4	Lens
5	Socket
6	High-mount brake light bulb

4. Install in the reverse order of removal.

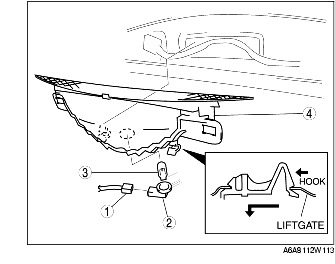

WGN

In-vehicle-type

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim.

3. Remove in the order indicated in the table.


1	Connector
2	Socket
3	High-mount brake light bulb
4	High-mount brake light

4. Install in the reverse order of removal.

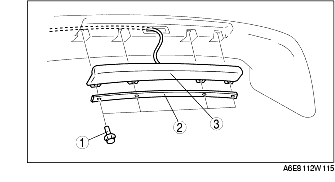

Rear spoiler type

1. Disconnect the negative battery cable.

2. Remove the rear spoiler.

3. Remove in the order indicated in the table.


1	Bolt
2	Cover
3	Connector
4	High-mount brake light

4. Install in the reverse order of removal.
