1. Disconnect the negative battery cable.

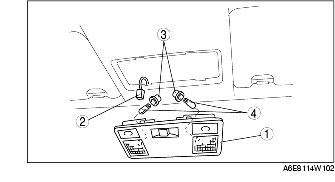

2. Remove in the order indicated in the table.
|
1
|
Front map light (See Front Map Light Removal Note)
|
|
2
|
Connector
|
|
3
|
Socket
|
|
4
|
Map light bulb
|
3. Install in the reverse order of removal.
1. Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the front map light.
2. Push the hooks to remove the front map light.
