1. Disconnect the negative battery cable.

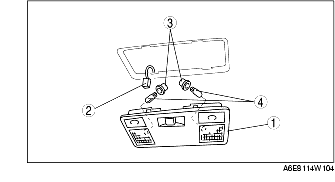

2. Remove in the order indicated in the table.
|
1
|
Rear map light (See Rear Map Light Removal Note)
|
|
2
|
Connector
|
|
3
|
Socket
|
|
4
|
Rear map light bulb
|
3. Install in the reverse order of removal.

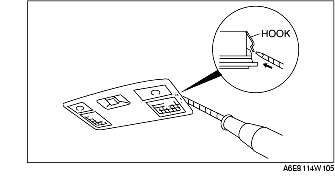

1. Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the rear map light.
2. Push the hooks to remove the rear map light.
