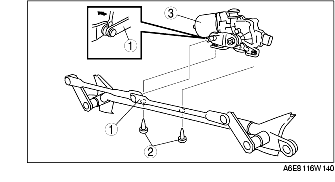

1. Disassemble in the order indicated in the table.
|
1
|
Windshield wiper link (See Windshield Wiper Link Removal Note)
|
|
2
|
Bolt
|
|
3
|
Windshield wiper motor
|
2. Assemble in the reverse order of disassembly.
1. Pry off the connection between the windshield wiper motor and windshield wiper link.
