REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900475500

1. Disconnect the negative battery cable.

2. Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION)

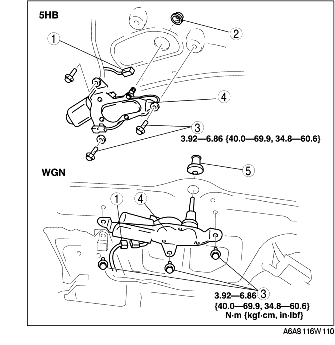

4. Remove in the order indicated in the table.

1
Connector
2
Outer bushing (5HB)
3
Bolt
4
Rear wiper motor
5
Outer bushing (WGN)

5. Install in the reverse order of removal.

6. Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT.)
