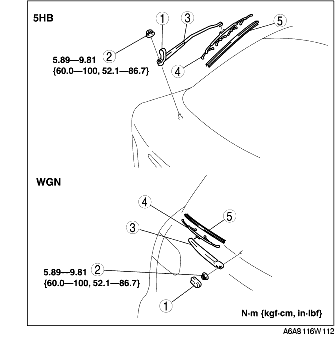

1. Remove in the order indicated in the table.
|
1
|
Cap
|
|
2
|
Nut
|
|
3
|
Rear wiper arm (See Rear Wiper Arm Installation Note)
|
|
4
|
Rear wiper blade
|
|
5
|
Rubber brush
|
2. Install in the reverse order of removal.
3. Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT)

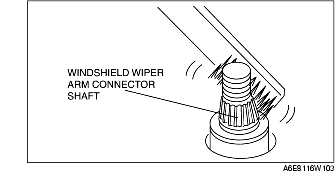

1. Clean the rear wiper arm connector shaft using a wire brush before installing the rear wiper arm.
