WINDSHIELD WASHER MOTOR INSPECTION


id091900802500

1. Disconnect the negative battery cable.

2. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION)

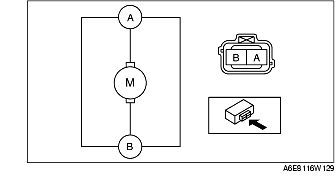

3. Connect battery positive voltage to the motor terminal B and ground to the motor terminal A.

4. Verify that the windshield washer motor operates.

• If the motor does not operate, replace the windshield washer motor.
