REAR WASHER MOTOR REMOVAL/INSTALLATION


id091900802600

1. Disconnect the negative battery cable.

2. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION)

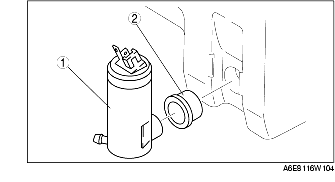

3. Remove in the order indicated in the table.

1
Rear washer motor
2
Grommet

4. Install in the reverse order of removal.
