1. Disconnect the negative battery cable.
2. Remove the main fuse block cover.

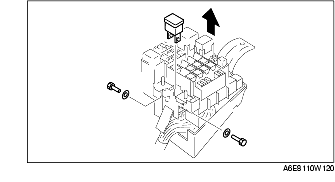

3. Remove in the order indicated in the table.
|
1
|
Nut
|
|
2
|
Bolt (See Bolt Removal Note)
|
|
3
|
Main fuse
|
4. Install in the reverse order of removal.

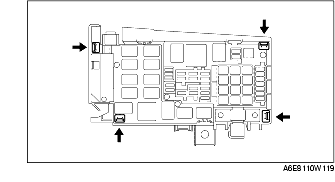

1. Press and remove the tabs on the main fuse block at the positions indicated by the arrows.
2. Lift up the main fuse block and remove the bolts.
