INFORMATION DISPLAY REMOVAL/INSTALLATION

id092200801400

1. Disconnect the negative battery cable.

2. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

3. Remove the center box.

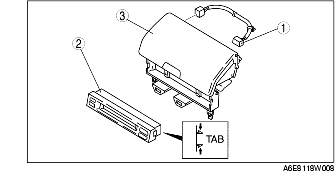

4. Remove in the order indicated in the table.

1
Short harness
2
Information display
3
Center box

5. Install in the reverse order of removal.

Information Display Removal Note

1. Squeeze the tabs of information display and pull it forward to remove it.
