FUEL SYSTEM [SKYACTIV-D 2.2]

id0114z7002600


Outline

•  Fast-response, Piezo-electric type fuel injectors have been adopted which achieve highly precise fuel injection control.

Structural view

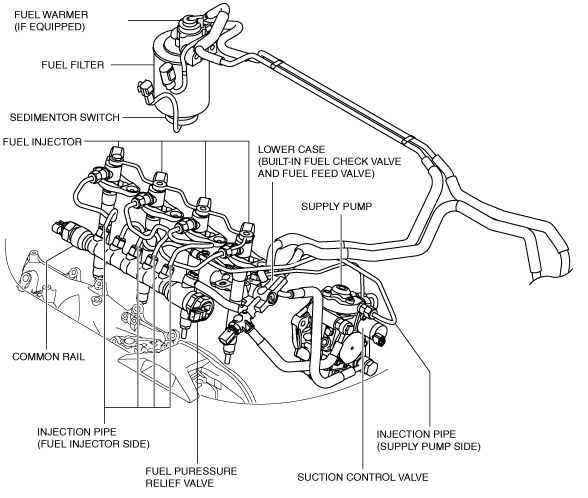

Engine compartment side

L.H.D.

am6zzn00004575

R.H.D.

ac5wzn00001918


Fuel tank side

2WD

am6zzn00002477

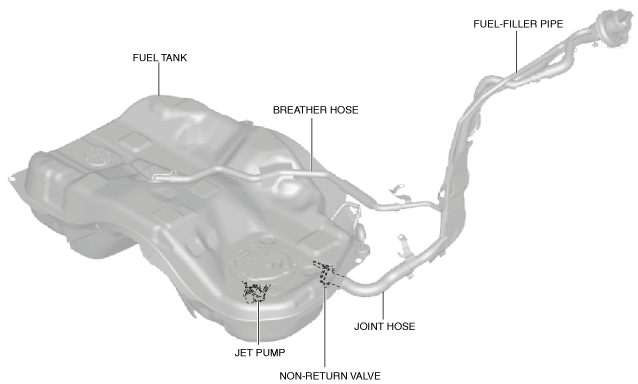

4WD

am6zzn00003225

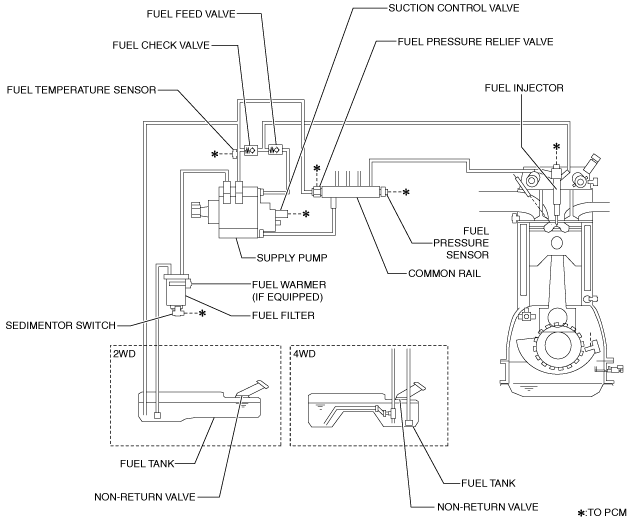

System Diagram

am6zzn00004576

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Common rail injection system
(See COMMON RAIL INJECTION SYSTEM [SKYACTIV-D 2.2].)
Fuel tank
(See FUEL TANK [SKYACTIV-D 2.2].)
Fuel filter
(See FUEL FILTER [SKYACTIV-D 2.2].)
Fuel warmer (if equipped)
(See FUEL WARMER [SKYACTIV-D 2.2].)
Supply pump
(See SUPPLY PUMP [SKYACTIV-D 2.2].)
Suction control valve
(See SUCTION CONTROL VALVE [SKYACTIV-D 2.2].)
Fuel check valve
(See FUEL CHECK VALVE [SKYACTIV-D 2.2].)
Fuel feed valve
(See FUEL FEED VALVE [SKYACTIV-D 2.2].)
Common rail
(See COMMON RAIL [SKYACTIV-D 2.2].)
Fuel pressure relief valve
(See FUEL PRESSURE RELIEF VALVE [SKYACTIV-D 2.2].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-D 2.2].)
Fuel pressure sensor
(See FUEL PRESSURE SENSOR [SKYACTIV-D 2.2].)
Fuel temperature sensor
(See FUEL TEMPERATURE SENSOR [SKYACTIV-D 2.2].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 2.2].)
Sedimentor switch
(See SEDIMENTOR SWITCH [SKYACTIV-D 2.2].)


Specification

Item

Specification
Supply pump
Electric control
Fuel injector
Piezo-electric
Fuel tank capacity
(L {US gal, Imp gal})
2WD: 62.0 {16.4, 13.6}
4WD: 52.0 {13.7, 11.4}
Fuel type
EN590 or the equivalent
