DOWN LIGHT

id091800020400

Purpose

• Down light: Illuminates the area around the console.

Function

• The down lights turn on according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control.

Structure/Construction

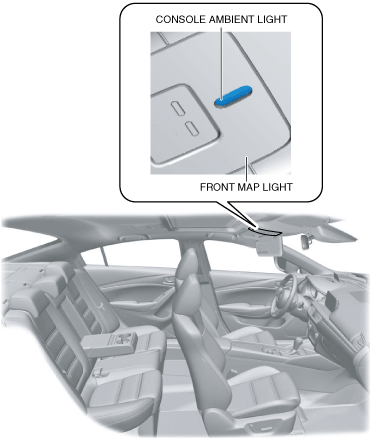

• The down light is positioned in the front map light.

am6xun00003667

Operation

Note

• For the operation conditions, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)

1. When all the operation conditions are met, the rear body control module (RBCM) turns the down light on (1).

am6xun00003668

Fail-safe

• Not applicable
