REAR MAP LIGHT
id091800112700
Purpose
• The rear map lights shine light at the center of the vehicle interior.
Function
• The rear body control module (RBCM) detects the on/off of the rear map light switch and controls the on/off of the rear map light.
• The rear map lights illuminate according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the room light switch for front map light is in the DOOR position.

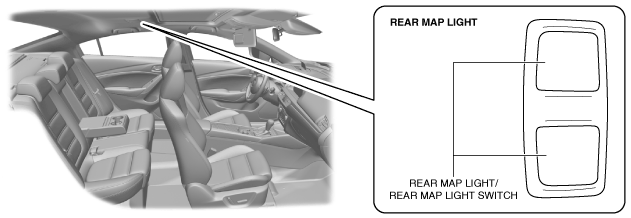

Construction
• A bulb type or LED type is available for the rear map lights.
• The rear map lights are assembled to the headliner.
Operation
-
Note
-
• When the rear body control module (RBCM) receives a lock signal on the remote transmitter with the ignition switched off and all doors/trunk lid (4SD)/liftgate (WGN) closed, it automatically turns the rear map light off.

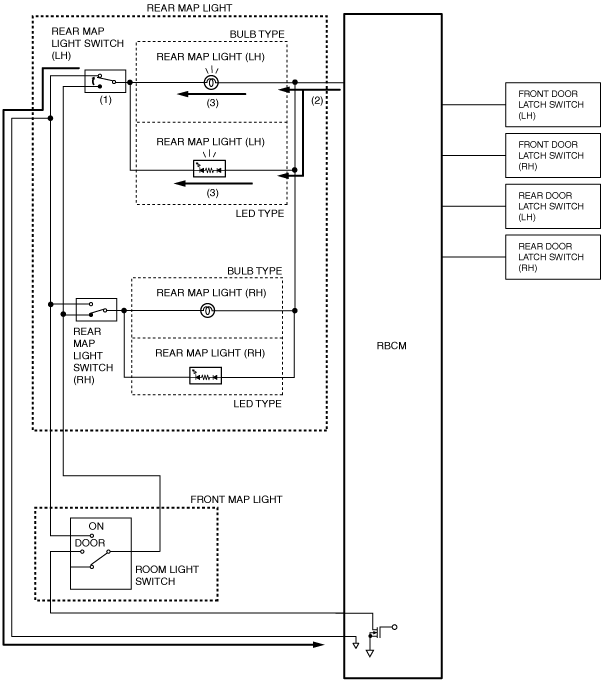

Rear map light switch operation
1. The rear map light switch is on.
2. The battery current flows to the rear map light from the rear body control module (RBCM).
3. The rear map light illuminates.
Room light switch for front map light operation
1. Room light switch for the front map light is in the DOOR position.
2. When any door is opened, the door open signal is input to the rear body control module (RBCM).
3. When the rear body control module (RBCM) receives the door open signal, it turns on the transistor.
4. When the transistor turns on, the battery current flows to the rear map lights from the rear body control module (RBCM).
5. The rear map lights illuminate.
-
Note
-
• When the room light switch is in the DOOR position, the rear map light illumination on/off timing is controlled by the room light control system. For details, refer to the "
ROOM LIGHT CONTROL SYSTEM".
Fail-safe
• Function not equipped.
