LUBRICATION SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0111h5002100

Outline

• Pressure loss is reduced by optimizing the oil passage.

• With the adoption of the chain drive type oil pump, oil pump drive force has been reduced.

• With the adoption of the oil shower pipe, sliding resistance has been reduced.

• With the adoption of the engine oil solenoid valve, oil pump discharge pressure can be controlled (hydraulic two-step control).

Structural View

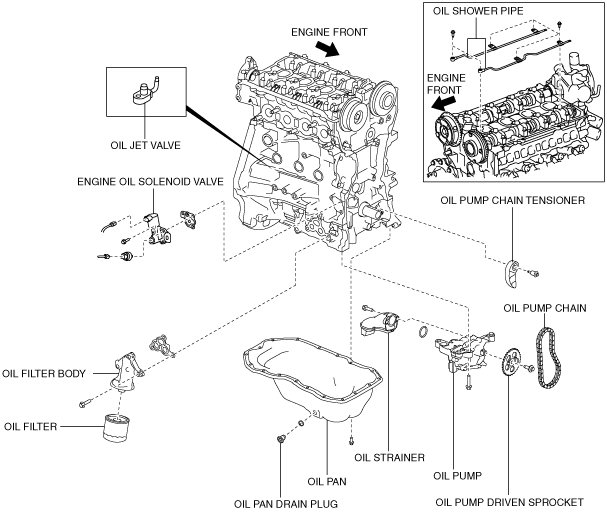

SKYACTIV-G 2.0

am6zzn00002416

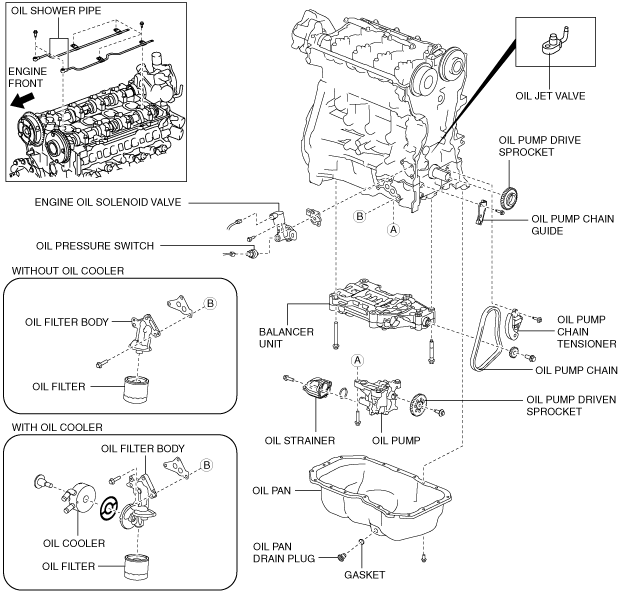

SKYACTIV-G 2.5

am6zzn00002417

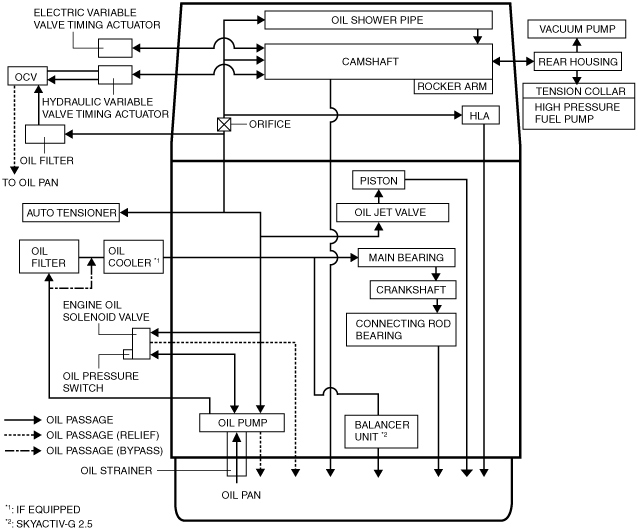

Flow View

am6zzn00002418

Structure

• Consists of the following parts:

Oil filter	(See OIL FILTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Oil cooler	(See OIL COOLER [SKYACTIV-G 2.5].)
Oil pan	(See OIL PAN [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Oil strainer	(See OIL STRAINER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Oil pump	(See OIL PUMP [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Oil jet valve	(See OIL JET VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Engine oil solenoid valve	(See ENGINE OIL SOLENOID VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Oil shower pipe	(See OIL SHOWER PIPE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
