REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800100

1.  For the 4SD, remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2.  For the WGN, remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(7)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

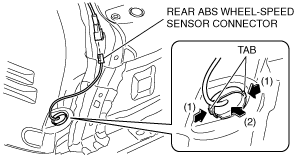

3.  Disconnect the rear ABS wheel-speed sensor connector.

am6zzw00009119

4.  Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.

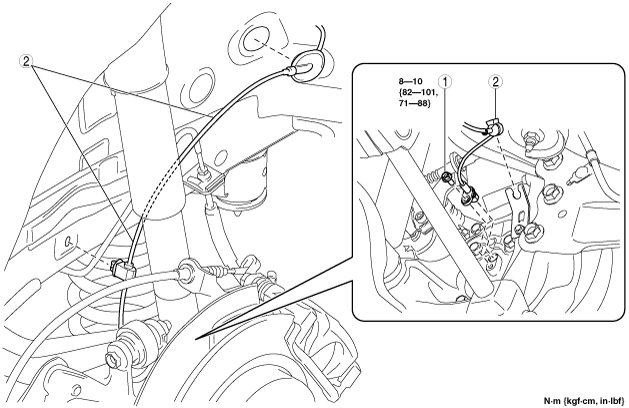

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  After installation, verify that there is no twisting in the rear ABS wheel-speed sensor.

am6zzw00009120

1	Bolt
2	Rear ABS wheel-speed sensor (See Rear ABS Wheel-speed Sensor Removal Note.)

Rear ABS Wheel-speed Sensor Removal Note

1.  Pull aside the mudguard and remove the rear ABS wheel-speed sensor.
