DTC B1197:11/B1197:13/B1197:87/B1197:96

System malfunction location	• B1197:11: Passenger-side side air bag sensor No.2 circuit short to body ground • B1197:13: Passenger-side side air bag sensor No.2 circuit open circuit or short to power supply • B1197:87: Signal reception error from passenger-side side air bag sensor No.2 • B1197:96: Passenger-side side air bag sensor No.2 internal malfunction
Detection condition	Warning • Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. • Wiring harness between the passenger-side side air bag sensor No.2 and SAS control module has a malfunction • Passenger-side side air bag sensor No.2 has a malfunction
Fail-safe	Not applicable
Possible cause	• Passenger-side side air bag sensor No.2 connector malfunction • Short circuit to power supply or body ground in the wiring harness between the passenger-side side air bag sensor No.2 and SAS control module • Open circuit in the wiring harness between the passenger-side side air bag sensor No.2 and SAS control module • Passenger-side side air bag sensor No.2 malfunction • SAS control module malfunction

System malfunction location

• B1197:11: Passenger-side side air bag sensor No.2 circuit short to body ground

• B1197:13: Passenger-side side air bag sensor No.2 circuit open circuit or short to power supply

• B1197:87: Signal reception error from passenger-side side air bag sensor No.2

• B1197:96: Passenger-side side air bag sensor No.2 internal malfunction

Detection condition

Warning

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• Wiring harness between the passenger-side side air bag sensor No.2 and SAS control module has a malfunction

• Passenger-side side air bag sensor No.2 has a malfunction

Fail-safe

Not applicable

Possible cause

• Passenger-side side air bag sensor No.2 connector malfunction

• Short circuit to power supply or body ground in the wiring harness between the passenger-side side air bag sensor No.2 and SAS control module

• Open circuit in the wiring harness between the passenger-side side air bag sensor No.2 and SAS control module

• Passenger-side side air bag sensor No.2 malfunction

• SAS control module malfunction

Step	Inspection	Action
1	INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CONNECTOR Warning • Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) • Switch the ignition to off. • Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Remove the passenger-side rear side seat back (4SD). (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.) • Remove the passenger-side trunk side upper trim (WGN). (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.) • Disconnect the passenger-side side air bag sensor No.2 connector. (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.) • Inspect the passenger-side side air bag sensor No.2 connector. (Corrosion, damage, and disconnected pins) • Is there any malfunction of the passenger-side side air bag sensor No.2 connector?	Yes	Replace the malfunctioning part, then go to Step 5.
No	Go to the next step.
2	INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR SHORT TO GROUND • Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) • Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION.) • Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.) • Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side front seat connector. (See FRONT SEAT REMOVAL/INSTALLATION.) • Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side curtain air bag module connector. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) • Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side pre-tensioner seat belt connector. (See FRONT SEAT BELT REMOVAL/INSTALLATION.) • Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) • Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.) • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― SAS control module terminal 1L ― SAS control module terminal 1K Note • Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2. • Is there continuity?	Yes	If there is a common connector:If there is no common connector: Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal. • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Replace the malfunctioning part. • Replace the wiring harness which has a short to ground. Go to Step 5.
No	Go to the next step.
3	INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR OPEN CIRCUIT • Passenger-side side air bag sensor No.2 and SAS control module connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ― Passenger-side side air bag sensor No.2 terminal A—SAS control module terminal 1L ― Passenger-side side air bag sensor No.2 terminal B—SAS control module terminal 1K Note • Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2. • Is there continuity?	Yes	Go to the next step.
No	If there is a common connector:If there is no common connector: Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal. • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Replace the malfunctioning part. • Replace the wiring harness which has an open circuit. Go to Step 5.
4	INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR SHORT TO POWER SUPPLY • Passenger-side side air bag sensor No.2 and SAS control module connectors are disconnected. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Switch the ignition ON (engine off or on). • Measure the voltage at the following terminals (wiring harness-side): ― SAS control module terminal 1L ― SAS control module terminal 1K Note • Measure the voltage while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2. • Is the voltage 0 V?	Yes	Replace the passenger-side side air bag sensor No.2, then go to the next step. (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)
No	If there is a common connector:If there is no common connector: Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal. • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Replace the malfunctioning part. • Replace the wiring harness which has a short to power supply. Go to the next step.
5	PERFORM SAS CONTROL MODULE DTC INSPECTION • Switch the ignition to off. • Disconnect the negative battery cable and wait for 1min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Connect the SAS control module connectors. • Reconnect all disconnected connectors. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Switch the ignition ON (engine off or on). • Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) • Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION.) • Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
No	DTC troubleshooting completed.

Step

Inspection

Action

INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CONNECTOR

Warning

• Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.

(See AIR BAG SYSTEM SERVICE WARNINGS.)

(See AIR BAG SYSTEM SERVICE CAUTIONS.)

• Switch the ignition to off.

• Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

• Remove the passenger-side rear side seat back (4SD). (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

• Remove the passenger-side trunk side upper trim (WGN). (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

• Disconnect the passenger-side side air bag sensor No.2 connector. (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)

• Inspect the passenger-side side air bag sensor No.2 connector. (Corrosion, damage, and disconnected pins)

• Is there any malfunction of the passenger-side side air bag sensor No.2 connector?

Yes

Replace the malfunctioning part, then go to Step 5.

Go to the next step.

INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR SHORT TO GROUND

• Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

• Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION.)

• Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

• Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side front seat connector. (See FRONT SEAT REMOVAL/INSTALLATION.)

• Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side curtain air bag module connector. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

• Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side pre-tensioner seat belt connector. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

• Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

• Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

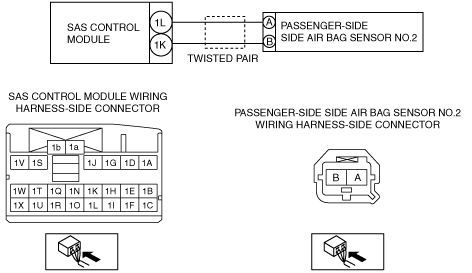

• Inspect for continuity between the following terminals (wiring harness-side) and body ground:

― SAS control module terminal 1L

― SAS control module terminal 1K

Note

• Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2.

• Is there continuity?

Yes

If there is a common connector:If there is no common connector:

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal.

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

• Replace the malfunctioning part.

• Replace the wiring harness which has a short to ground.

Go to Step 5.

Go to the next step.

INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR OPEN CIRCUIT

• Passenger-side side air bag sensor No.2 and SAS control module connectors are disconnected.

• Inspect for continuity between the following terminals (wiring harness-side):

― Passenger-side side air bag sensor No.2 terminal A—SAS control module terminal 1L

― Passenger-side side air bag sensor No.2 terminal B—SAS control module terminal 1K

Note

• Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2.

• Is there continuity?

Yes

Go to the next step.

If there is a common connector:If there is no common connector:

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal.

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

• Replace the malfunctioning part.

• Replace the wiring harness which has an open circuit.

Go to Step 5.

INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR SHORT TO POWER SUPPLY

• Passenger-side side air bag sensor No.2 and SAS control module connectors are disconnected.

• Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

• Switch the ignition ON (engine off or on).

• Measure the voltage at the following terminals (wiring harness-side):

― SAS control module terminal 1L

― SAS control module terminal 1K

Note

• Measure the voltage while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2.

• Is the voltage 0 V?

Yes

Replace the passenger-side side air bag sensor No.2, then go to the next step. (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)

If there is a common connector:If there is no common connector:

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal.

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.

• Replace the malfunctioning part.

• Replace the wiring harness which has a short to power supply.

Go to the next step.

PERFORM SAS CONTROL MODULE DTC INSPECTION

• Switch the ignition to off.

• Disconnect the negative battery cable and wait for 1min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

• Connect the SAS control module connectors.

• Reconnect all disconnected connectors.

• Switch the ignition ON (engine off or on).

• Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.)

• Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION.)

• Are the same DTCs present?

Yes

Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

DTC troubleshooting completed.
