REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

4SD

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

4.  Remove the fastener.

am6zzw00010558

5.  Disconnect the connector.

6.  Remove the bolts.

am6zzw00010559

7.  Remove the rear buckle (RH) and rear buckle (LH) with the rear center seat belt.

8.  Install in the reverse order of removal. (See Rear Buckle Installation Note.)

WGN

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

4.  Remove the fastener.

am6zzw00010558

5.  Disconnect the connector.

6.  Remove the bolts.

am6zzw00010560

7.  Remove the rear buckle (RH) and rear buckle (LH).

8.  Install in the reverse order of removal. (See Rear Buckle Installation Note.)

Rear Buckle Installation Note

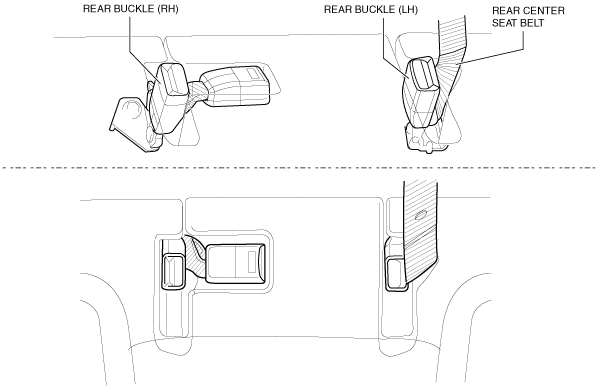

1.  After installing the rear buckle, place it as shown in the figure.

am6zzw00010561
