ENERGY-ABSORBING FORM REMOVAL/INSTALLATION

id091000888800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Insert the flathead screwdriver shown in the figure, push fasteners A for back side of front bumper reinforcement.

am6zzw00010157

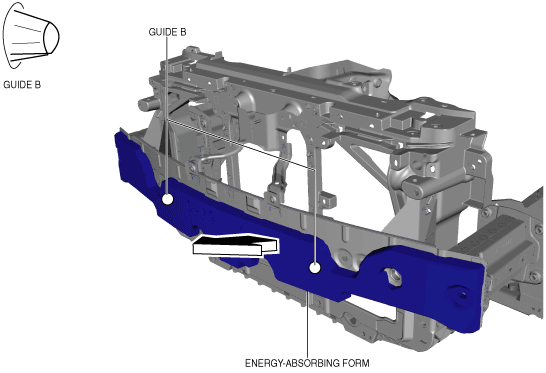

5.  Pull the energy-absorbing form in the direction of the arrow shown in the figure while detaching guides B

am6zzw00010158

6.  Install in the reverse order of removal.

7.  Adjust the front fog light aiming. (with front fog lights) (See FRONT FOG LIGHT AIMING.)
