REAR SEAT BACK FRAME REMOVAL/INSTALLATION

id091300912500

Caution

•  When performing the procedure with a rear seat back removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

Sedan

1.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Remove the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

3.  Remove the head restraint.

4.  Unzip the zippers.

am6zzw00012438

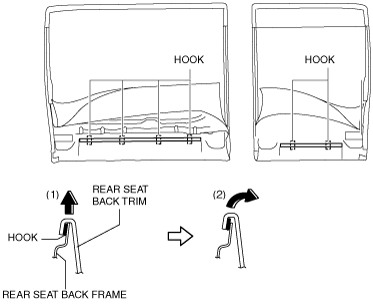

5.  Slide the hooks in the order of arrows (1) and (2) shown in the figure to detach them from the rear seat back frame.

am6zzw00012439

6.  Partially peel back the rear seat back trim and remove the fasteners.

am6zzw00012440

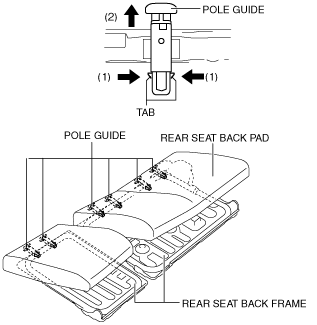

7.  Partially open the rear seat back pad, and while detaching the tabs in the direction of arrow (1) shown in the figure, pull out the pole guides in the direction of arrow (2).

am6zzw00012441

8.  Pull the rear seat back frame in the direction of the arrow shown in the figure and remove it from the rear set back pad.

am6zzw00012442

9.  Install in the reverse order of removal.

Wagon

1.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Remove the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

3.  Remove the head restraint.

4.  Unzip the zippers.

am6zzw00012443

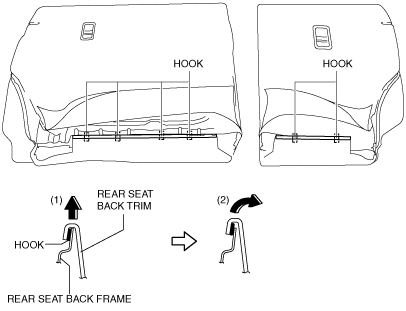

5.  Slide the hooks in the order of arrows (1) and (2) shown in the figure to detach them from the rear seat back frame.

am6zzw00012444

6.  Detach the tab in the direction of arrows (1) shown in the figure and remove the top tether anchor cover in the direction of arrow (2).

am6zzw00012445

7.  Detach the tabs in the direction of arrows (1) shown in the figure and remove the seat belt cover in the direction of arrow (2).

am6zzw00012446

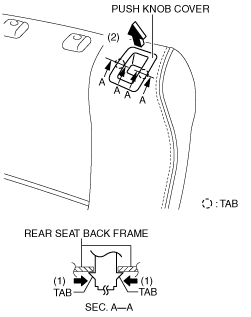

8.  Detach the tabs in the direction of arrows (1) shown in the figure and remove the push knob cover in the direction of arrow (2).

am6zzw00012447

9.  Partially peel back the rear seat back trim and remove the fasteners.

am6zzw00012448

10.  Partially open the rear seat back pad, and while detaching the tabs in the direction of arrow (1) shown in the figure, pull out the pole guides in the direction of arrow (2).

am6zzw00012449

11.  Pull the rear seat back frame in the direction of the arrow shown in the figure and remove it from the rear set back pad.

am6zzw00012450

12.  Remove the rear center seat belt. (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)

13.  Remove the tab and remove the push knob in the direction of the arrow shown in the figure.

am6zzw00012451

14.  Remove the cable.

15.  Install in the reverse order of removal.
