REAR SEAT HINGE REMOVAL/INSTALLATION

id091300999100

4SD

Side hinge

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove bolt A.

am6zzw00011347

4.  Remove bolt B.

5.  Remove the side hinge.

6.  Install in the reverse order of removal.

Center hinge

1.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Remove bolt A.

am6zzw00011348

3.  Remove bolt B.

4.  Remove the center hinge.

5.  Install in the reverse order of removal.

WGN

Side hinge

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove bolt A.

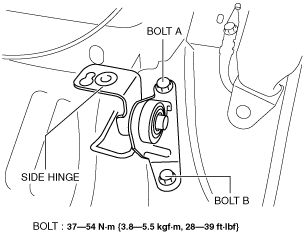

am6zzw00011349

4.  Remove bolt B.

5.  Remove the side hinge.

6.  Install in the reverse order of removal.

Center hinge

1.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Remove bolt A.

am6zzw00011350

3.  Remove bolt B.

4.  Remove the center hinge.

5.  Install in the reverse order of removal.
