TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700803100

4SD

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(6)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

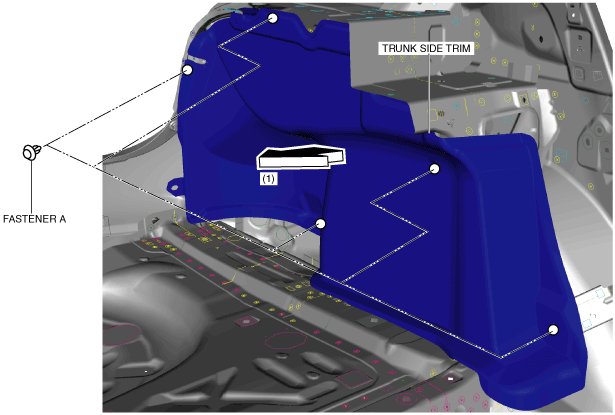

2.  Remove fasteners A.

ac5wzw00004000

3.  Remove the trunk side trim in the direction of the arrow (1) shown in the figure.

4.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Set the trunk side upper trim aside. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

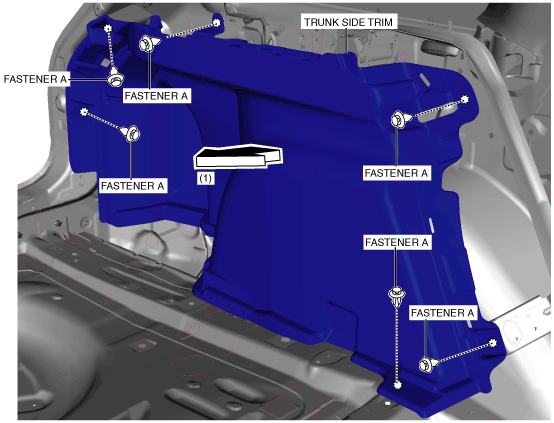

4.  Remove fastener A.

am6zzw00010506

5.  Remove the trunk side trim in the direction of the arrow (1) shown in the figure.

6.  Install in the reverse order of removal.
