HEADLIGHT LEVELING SWITCH INSPECTION

id091800803700

Note

•  The headlight leveling switch is integrated with the cluster switch.

•  For the headlight leveling switch removal/installation, refer to “CLUSTER SWITCH REMOVAL/INSTALLATION” (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

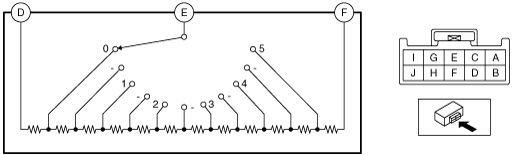

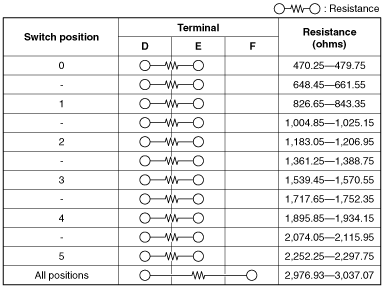

2.  Verify that the resistance between the cluster switch terminals is as indicated in the table.

am6zzw00008074

am6zzw00008075

•  If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
