FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

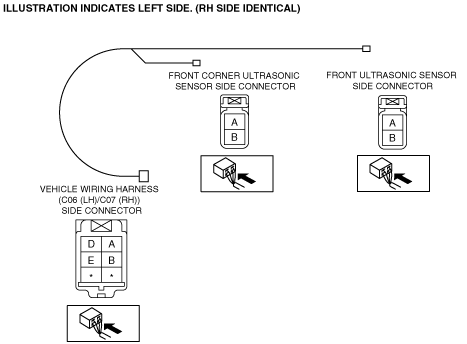

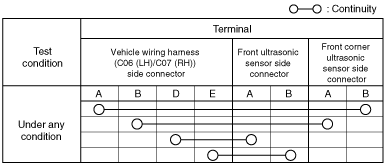

4.  Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.

ac5wzw00003267

ac5jjw00001273

•  If not as indicated in the table, replace the front ultrasonic sensor short-cord.
