EMISSION SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116zb110100

Outline

• A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

Structural View

Engine compartment side

ac5uun00000074

Exhaust system side

am6zzn00002492

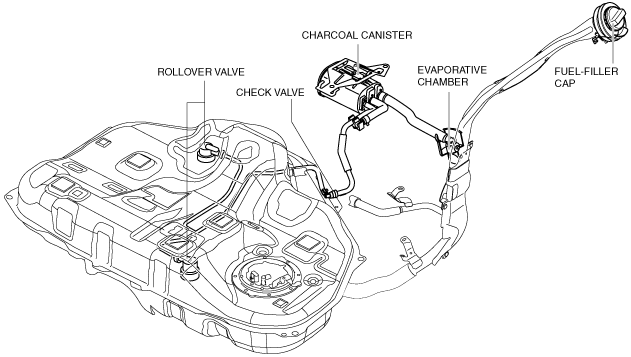

Fuel tank side

am6zzn00002493

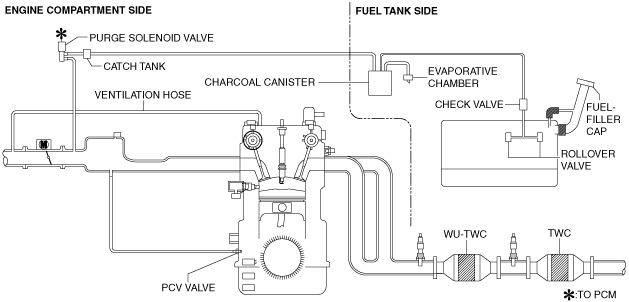

System Diagram

am6zzn00002494

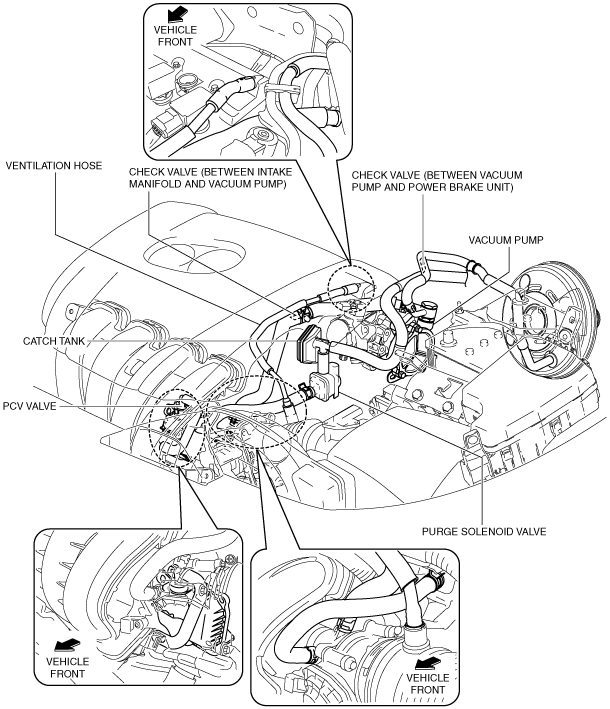

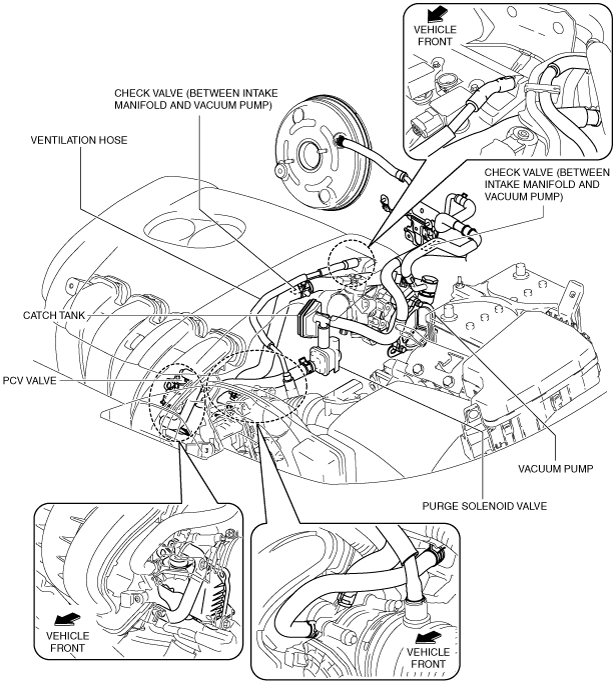

Vacuum Hose Routing Diagram

L.H.D.

am6zzn00002495

R.H.D.

am6zzn00002496

Structure

• The emission system consists of the following parts:

Part/System name	Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Catch tank	(See CATCH TANK [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Check valve	(See CHECK VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Quick release connector (emission system)	(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

Specification

Item

Specification

Catalyst form

WU-TWC (monolith)

TWC (monolith)

EVAP control system

Charcoal canister type

PCV system

Closed type
