REAR BRAKE (DISC) REMOVAL/INSTALLATION


id041100800500

Note
•  When in maintenance mode, the clearance between the disc pad and the disc plate expands.
•  When the maintenance mode is completed, perform the electric parking brake automatic adjustment.
•  With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE.)

2.  Disconnect the electric parking brake motor gear unit connector.

am6xuw00007831

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  End the maintenance mode. (See MAINTENANCE MODE.)

6.  After installation, pump the brake pedal a few times and inspect the following:

―  Disc pad projection does not contact piston and caliper
―  Brake drag

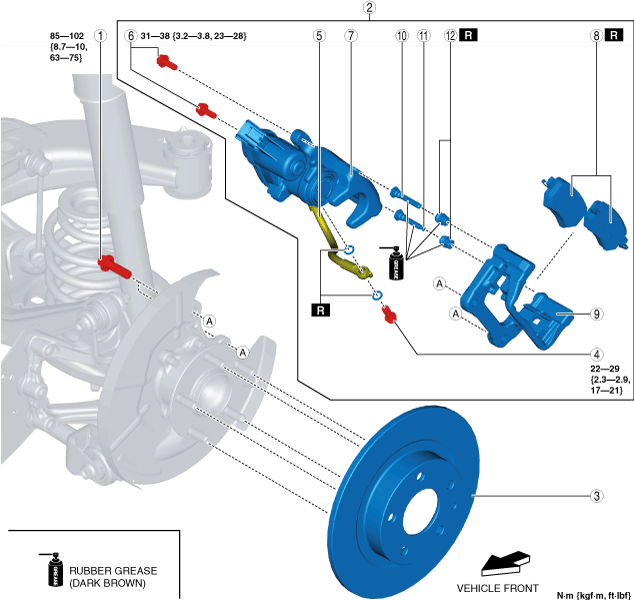

am6zzw00015535

1
Bolt
2
Brake calier component
3
Disc plate
4
Bolt
5
Brake hose
6
Bolt
7
Caliper
8
Disc pad component
9
Mounting support
10
Slide pin
11
Slide pin (with bushing)
12
Dust boot


Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Press in the piston using a commercially available disc brake expander tool.

Caution
•  When pressing the piston into the caliper, the caliper internal parts could be damaged while rotating and pressing the piston. Be careful not to rotate the piston when pressing the piston into the caliper.
am6xuw00008538

3.  Install the caliper.
