REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

1.  Remove rear ultrasonic sensor short-cord.(with parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

2.  Remove the rear ultrasonic sensor.(with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

3.  Disassemble in the order indicated in the table.

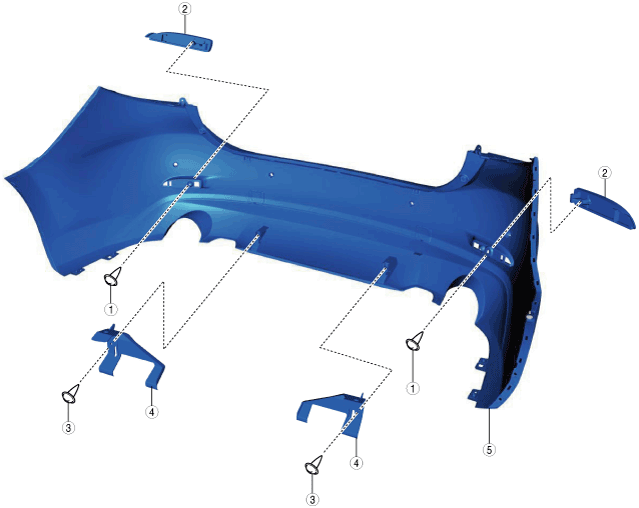

am6xuw00007441

1	Screw
2	Reflector
3	Screw
4	Bracket
5	Rear bumper face

4.  Assemble in the reverse order of disassembly.
