FRONT FENDER STAY REMOVAL/INSTALLATION

id091000803900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Capacitor (with i-ELOOP) (See CAPACITOR (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)

(4)  Theft-deterrent siren (with theft-deterrent system) (See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION.)

(5)  Washer tank (R.H.D. only) (See WASHER TANK REMOVAL/INSTALLATION.)

(6)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)

(7)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(8)  Side step molding (See SIDE STEP MOLDING REMOVAL/INSTALLATION.)

(9)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

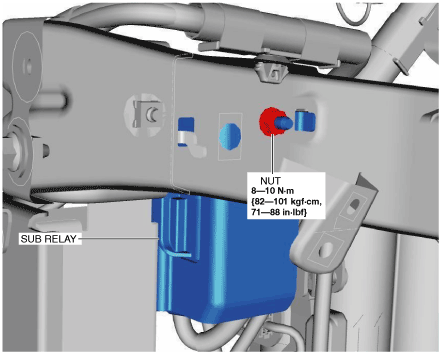

3.  Remove the nut.

am6zzw00013470

4.  Set the sub relay aside.

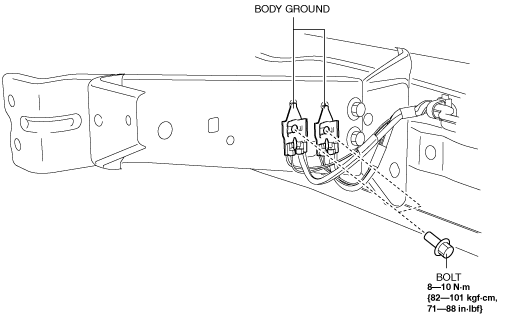

5.  Remove bolts and then remove body grounds.

am6xuw00007601

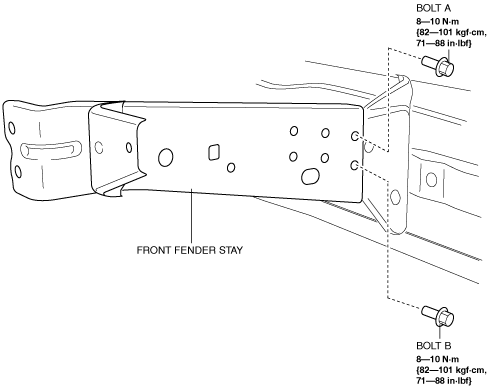

6.  Remove bolt A and bolt B.

am6xuw00007602

7.  Remove the front fender stay.

8.  Install in the reverse order of removal. (See Front Fender Stay Newly Replace Note.)

9.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)

10.  Adjust the front fog light aiming. (with front fog lights) (See FRONT FOG LIGHT AIMING.)

Front Fender Stay Newly Replace Note

Caution

•  If the bolt connection area is painted when the front fender stay is replaced, it could cause a malfunction in the PCM. Before painting the replaced front fender stay, refer to the [Paint Procedure For Replaced Front Fender Stay] in the bodyshop manual.
