FRONT DRAIN HOSE REMOVAL/INSTALLATION

id091500443800

4SD

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Remove the following parts:

(1) Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(15) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(16) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(17) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(18) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(19) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(20) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(21) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)

(22) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(23) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(24) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(25) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(26) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(27) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(28) Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(29) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

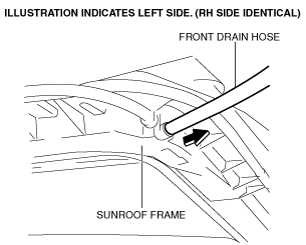

3. Disconnect the front drain hose from the sunroof frame.

am6zzw00013435

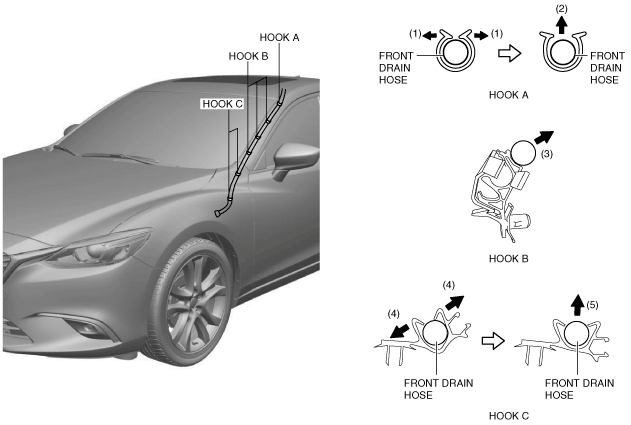

4. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks A.

am6zzw00013436

5. Remove the front drain hose in the direction of the arrow (3) from hook B.

6. Pull the front drain hose in the direction of the arrow in the order of (4), (5) and remove it while detaching hooks C.

7. Remove the driver-side lower panel. (driver-side) (L.H.D. only) (See LOWER PANEL REMOVAL/INSTALLATION.)

8. Remove the glove compartment. (passenger-side) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

9. Remove the blower unit. (R.H.D. passenger-side only) (See BLOWER UNIT REMOVAL/INSTALLATION.)

10. While visually verifying from the driver-side lower panel (driver-side) and glove component opening (passenger-side), partially peel back the dashboard lower insulator, then remove the front drain hose in the direction of the arrow (1) from grommet.

am6zzw00013437

11. Remove the grommet in the direction of the arrow (2), (3) shown in the figure.

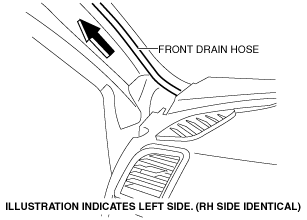

12. Pull the front drain hose out from the A-pillar side.

am6zzw00013438

13. Install in the reverse order of removal.

WGN

Driver-Side

2. Remove the following parts:

(1) Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(15) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(16) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(17) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(18) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(21) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3. Remove the following parts: (L.H.D. only)

(1) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(3) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(6) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(9) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

4. Disconnect the front drain hose from the sunroof frame.

am6zzw00013435

5. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks A.

am6zzw00013436

6. Remove the front drain hose in the direction of the arrow (3) from hook B.

7. Pull the front drain hose in the direction of the arrow in the order of (4), (5) and remove it while detaching hooks C.

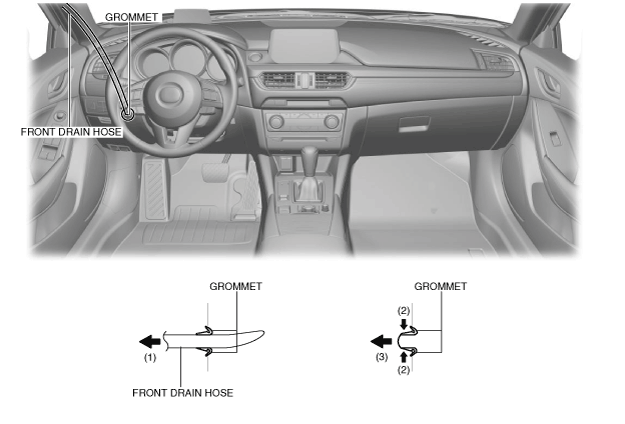

8. While visually verifying from the driver-side lower panel, partially peel back the dashboard lower insulator, then remove the front drain hose in the direction of the arrow (1) from grommet.

am6zzw00013439

9. Remove the grommet in the direction of the arrow (2), (3) shown in the figure.

10. Pull the front drain hose out from the A-pillar side.

am6zzw00013438

11. Install in the reverse order of removal.

Passenger-Side

2. Remove the following parts:

(1) Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(15) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(16) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(17) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(18) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(21) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(22) Remove the glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(23) blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)

3. Disconnect the front drain hose from the sunroof frame.

am6zzw00013440

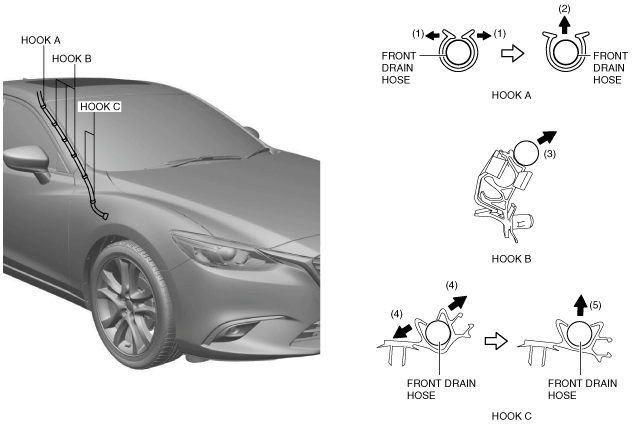

4. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks A.

am6zzw00013441

5. Remove the front drain hose in the direction of the arrow (3) from hook B.

6. Pull the front drain hose in the direction of the arrow in the order of (4), (5) and remove it while detaching hooks C.

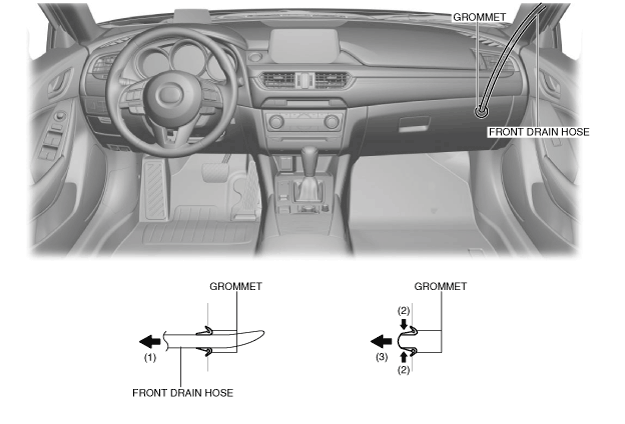

7. While visually verifying from the glove component opening (passenger-side), partially peel back the dashboard lower insulator, then remove the front drain hose in the direction of the arrow (1) from grommet.

am6zzw00013442

8. Remove the grommet in the direction of the arrow (2), (3) shown in the figure.

9. Pull the front drain hose out from the A-pillar side.

am6zzw00013443

10. Install in the reverse order of removal.
