REAR SASH MOLDING REMOVAL

id091600805100

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Remove the rear door garnish. (rear side) (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

2.  Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.

Caution

•  When remove the double-sided adhesive tape, be careful not to damage clip A.

am6zzw00011397

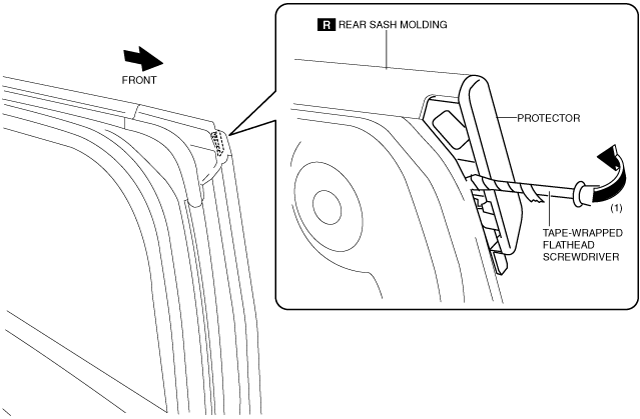

3.  Insert a tape-wrapped flathead screwdriver shown in the figure and remove the protector in the direction of arrow (1).

am6zzw00009345

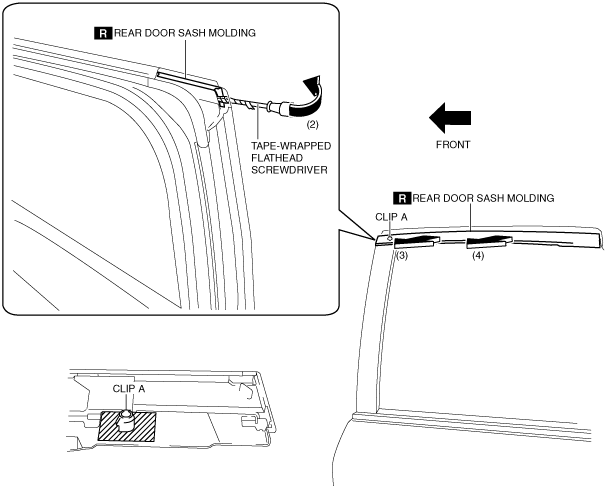

4.  Insert a tape-wrapped flathead screwdriver shown in the figure and remove clip A in the direction of arrow (2).

am6zzw00011398

5.  Remove the rear sash molding in the direction of arrow in the order of (3), (4) shown in the figure.
