REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(3)  Rear ultrasonic sensor short-cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

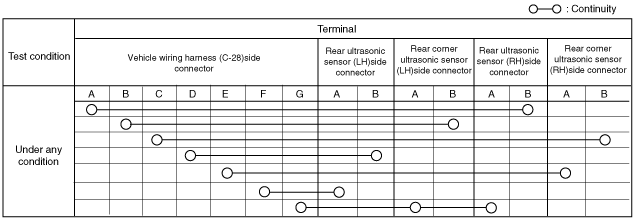

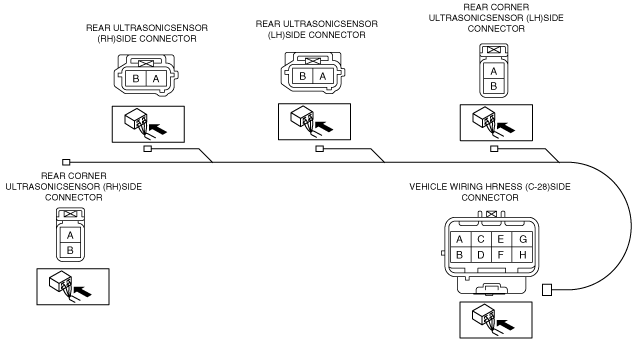

3.  Verify that the continuity between the rear ultrasonic sensor short-cord terminals is as indicated in the table.

am6zzw00014099

am6zzw00014095

•  If not as indicated in the table, replace the rear ultrasonic sensor short-cord. (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
