MULTI-INFORMATION DISPLAY

id092200073900

Outline

Function/Construction

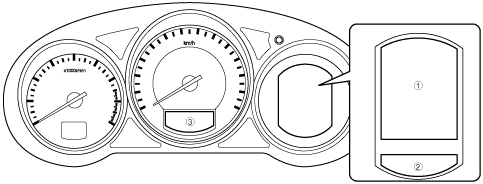

Information displayed in multi-information display

•  The information displayed by the multi-information display is as follows: Refer to the referenced section for details of the displayed information.

am6zzn00003408

Display area	Display content	Reference
1	Instantaneous fuel economy, average fuel economy, remaining distance to empty, average vehicle speed, vehicle speed alarm	(See TRIP COMPUTER INFORMATION SYSTEM.)
	Personalization settings display	(See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION.)
	Message display, warning display, and system operation display	(See Message screen, warning screen, and system operation screen.)
	Maintenance monitor	(See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)
2	Amount of remaining fuel	(See FUEL GAUGE.)
3	Ambient temperature	(See AMBIENT TEMPERATURE DISPLAY.)
	Total traveled distance/traveled distance over a specific interval	(See ODOMETER/TRIPMETER.)

Message screen, warning screen, and system operation screen

•  The instrument cluster displays the following screens in the multi-information display.

•  If the instrument cluster receives message display requests from multiple units, the screens are switched at certain intervals.

Screen display	Master warning light	Related unit	Reference/function
	—	Instrument cluster	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
	On	PCM (Global central configuration error or active air shutter system malfunction)	(See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [SKYACTIV-D 2.2].)
	On	PCM	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
	—
	—	PCM	(See WRENCH INDICATOR LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2].)
	—	Connectivity master unit	(See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)
	—
	—
	On	PCM (Brake switch malfunction)	(See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See FUEL INJECTION AMOUNT CONTROL [SKYACTIV-D 2.2].)
	—	PCM	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	On	PCM	(See GENERATOR CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GENERATOR CONTROL [SKYACTIV-D 2.2].)
	On	PCM (i-ELOOP)	(See i-ELOOP [i-ELOOP].)
	—
	—	PCM (i-stop)	(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
	On	EPS CM	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
	—	Instrument cluster (Parking brake warning)	(See ELECTRIC PARKING BRAKE.)
	—
	—	Electric parking brake control module	(See ELECTRIC PARKING BRAKE.)
	—	DSC HU/CM (TPMS)	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
	—	Laser sensor	(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).)
	—
	—
	—
	—	Parking assist unit	(See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)
	—
	—
	—
	On	TCM	(See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL, GW6AX-EL].)
	On	Start stop unit (Keyless entry system/Advanced keyless entry system)	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
	—
	—
	—
	—	Start stop unit (Push button start system)	(See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)
	—
	—
	—
	—
	—	Forward sensing camera (FSC)	(See LANE DEPARTURE WARNING SYSTEM (LDWS).) (See LANE-KEEP ASSIST SYSTEM.)
	—	Forward sensing camera (FSC)	(See HIGH BEAM CONTROL (HBC) SYSTEM.) (See LANE DEPARTURE WARNING SYSTEM (LDWS).) (See ADAPTIVE LED HEADLIGHTS.)
	—
	—	Parking assist unit	(See DRIVER ATTENTION ALERT SYSTEM.)
	—	Forward sensing camera (FSC)	(See LANE-KEEP ASSIST SYSTEM.)
	—	Radar unit (Mazda radar cruise control (MRCC) system)	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.)
	—
	—	Radar unit	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.) (See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
	—	Radar unit	(See SMART BRAKE SUPPORT (SBS).)
	—	Instrument cluster	(See DOOR AJAR WARNING DISPLAY.)
	On	4WD control module	(See 4WD WARNING LIGHT.)
	—
	—	Blind spot monitoring (BSM) control module	(See BLIND SPOT MONITORING (BSM) SYSTEM [Australian specs.].) (See BLIND SPOT MONITORING (BSM) SYSTEM [Except Australian specs.].)
	—	Instrument cluster	(See LIGHTS-ON REMINDER WARNING ALARM.)
	—	Front body control module (FBCM) (washer fluid level warning system)	(See WINDSHIELD WIPER SYSTEM.)

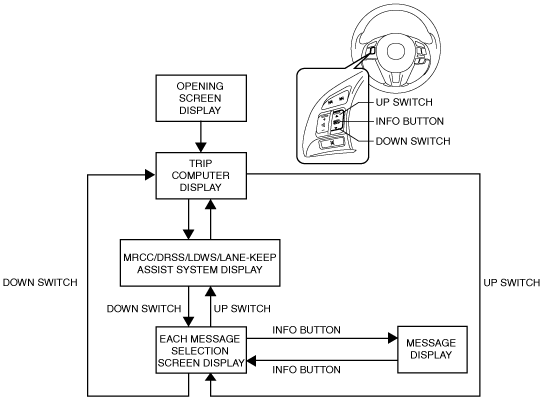

Switching of display content in multi-information display

•  The instrument cluster switches the display content of the multi-information display as follows based on the steering switch operation signal from the start stop unit.

am6zzn00003732

Data reset of display content in multi-information display

Caution

•  Previously stored data cannot be recovered after it is reset. When resetting data, explain the reset items to the customer and reset the data after obtaining their consensus.

•  The following information displayed on the multi-information display can be reset all at once. Refer to the Workshop Manual for the detailed resetting procedure.

Trip computer-related information

―  Average fuel economy

―  Average vehicle speed

―  TRIP value
