DIFFERENTIAL DISASSEMBLY

D6E051527100102

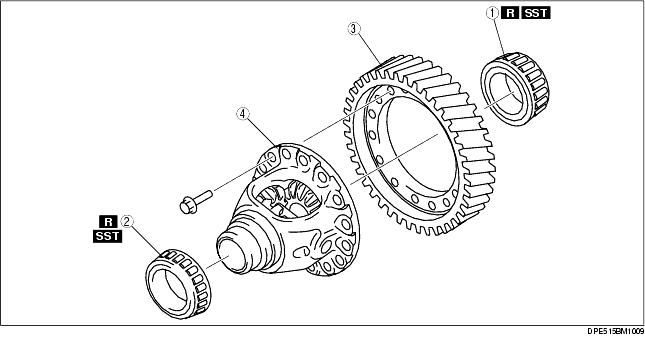

1. Disassemble in the order shown in the figure.


1	Bearing (ring gear side) (See Bearing (Ring Gear Side) Disassembly Note.)
2	Bearing (ring gear-opposite side) (See Bearing (Ring Gear-Opposite Side) Disassembly Note (4X2).) (See Bearing (Ring Gear-Opposite Side) Disassembly Note (4X4).)
3	Ring gear
4	Gear case component

Bearing (Ring Gear Side) Disassembly Note

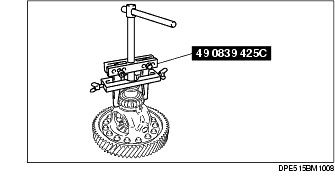

1. Remove the bearing using the SST.

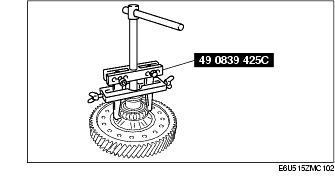

1. Remove the bearing using the SST.

1. Remove the bearing roller guide by prying with a flathead screwdriver as shown in the figure.

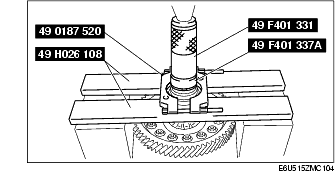

2. Remove the bearing inner race using the SSTs.
