DTC P2507:00 [L8, LF, L5]

id010242709800

DTC P2507:00

PCM B+ voltage low
DETECTION CONDITION
•  The PCM monitors the voltage of back-up battery positive terminal. If the PCM detects battery positive terminal voltage below 2.5 V for 2 s, the PCM determines that the backup voltage circuit has a malfunction.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in PCM memory.
POSSIBLE CAUSE
•  Burnt fuse

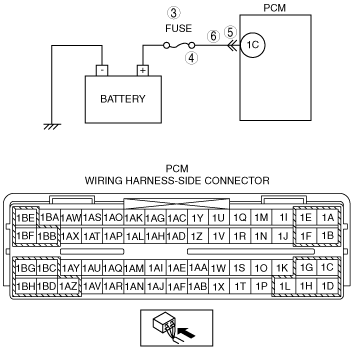

•  Open circuit in wiring between fuse and PCM terminal 1C
•  Short to ground between fuse and PCM terminal 1C
•  Connector or terminal malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service information.
If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FUSE
•  Switch the ignition to off.
•  Inspect fuse for failure and proper.
•  Is it normal?
Yes
Go to Step 6.
No
•  If fuse has been burnt, then go to the next step.
•  If fuse is not installed correctly, install it correctly then go to Step 7.
4
INSPECT MONITOR CIRCUIT FOR SHORT TO GROUND
•  Disconnect battery cables.
•  Inspect for continuity between fuse terminal and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for short to ground and install new fuse, then go to Step 7.
No
Go to the next step.
5
INSPECT POOR CONNECTION OF PCM CONNECTOR
•  Switch the ignition to off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal and/or connector, then go to Step 7.
No
Go to the next step.
6
INSPECT MONITOR CIRCUIT FOR OPEN CIRCUIT
•  Disconnect battery cables.
•  Inspect for continuity between fuse terminal and PCM terminal 1C (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for an open circuit, then go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P2507:00 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Switch the ignition to ON (Engine off).
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine and warm it up completely.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [L8, LF, L5].)
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Is any DTC present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [L8, LF, L5].)
No
Troubleshooting completed.
