COOLING SYSTEM LOCATION INDEX [MZR-CD 2.2]

id0112f3800100

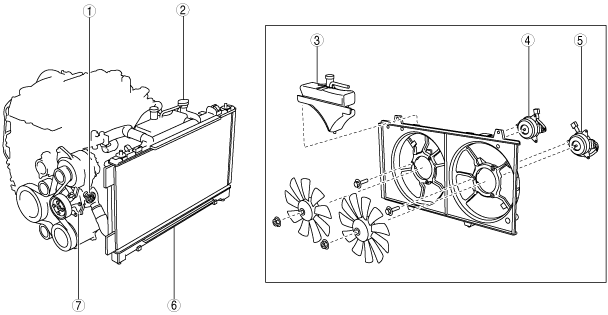

am6zzw00004390

1	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [MZR-CD 2.2].) (See THERMOSTAT INSPECTION [MZR-CD 2.2].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [MZR-CD 2.2].)
3	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [MZR-CD 2.2].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR-CD 2.2].)
4	Cooling fan motor No.2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See COOLING FAN MOTOR INSPECTION [MZR-CD 2.2].)
5	Cooling fan motor No.1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See COOLING FAN MOTOR INSPECTION [MZR-CD 2.2].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [MZR-CD 2.2].) (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR-CD 2.2].) (See RADIATOR REMOVAL/INSTALLATION [MZR-CD 2.2].)
7	Water pump (See WATER PUMP REMOVAL/INSTALLATION [MZR-CD 2.2].)
