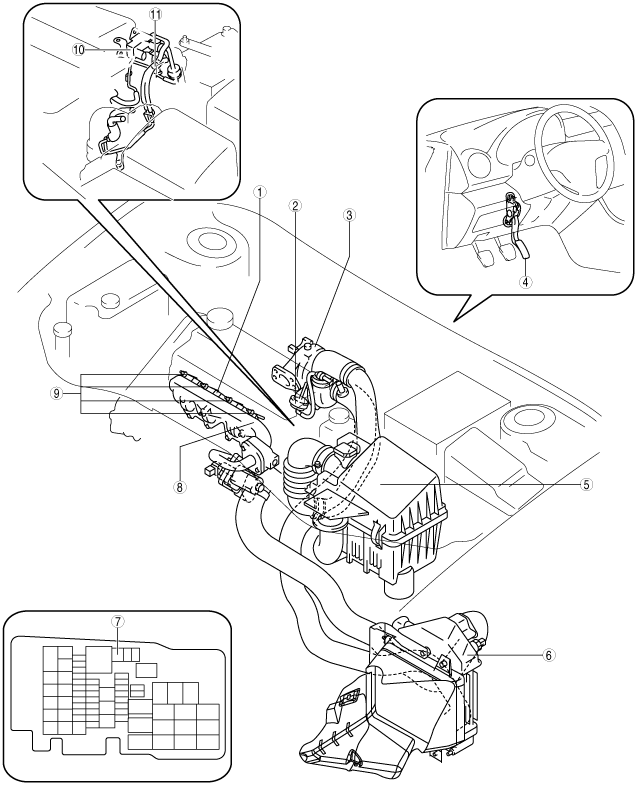

INTAKE-AIR SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0113f1801700

am6zzw00003376

1	Glow plug cord (See GLOW PLUG CORD INSPECTION [MZR-CD (RF Turbo)])
2	Guide blade actuator (See GUIDE BLADE ACTUATOR INSPECTION [MZR-CD (RF Turbo)])
3	Turbocharger (See TURBOCHARGER INSPECTION [MZR-CD (RF Turbo)])
4	Accelerator pedal component (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)])
5	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]) (See AIR CLEANER ELEMENT INSPECTION [MZR-CD (RF Turbo)])
6	Charge air cooler (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)])
7	Glow relay (See RELAY INSPECTION.)
8	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)])
9	Glow plug (See GLOW PLUG REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]) (See GLOW PLUG INSPECTION [MZR-CD (RF Turbo)])
10	VBC solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See VARIABLE BOOST CONTROL (VBC) SOLENOID VALVE INSPECTION [MZR-CD (RF Turbo)].)
11	VBC check valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See VARIABLE BOOST CONTROL (VBC) CHECK VALVE INSPECTION [MZR-CD (RF Turbo)].)
