FUEL SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0114f1800100

Engine compartment side

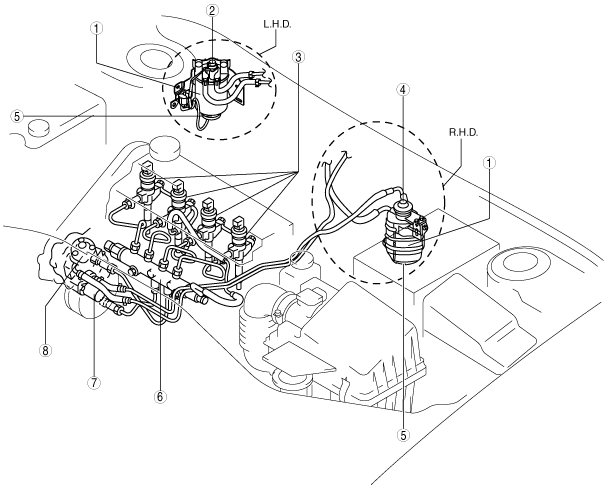

am6zzw00003159

1	Fuel filter (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]) (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)])
2	Fuel warmer (with fuel warmer) (See FUEL WARMER INSPECTION [MZR-CD (RF Turbo)])
3	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]) (See FUEL INJECTOR INSPECTION [MZR-CD (RF Turbo)])
4	Priming pump (R.H.D.)
5	Sedimentor switch (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)].) (See SEDIMENTOR SWITCH INSPECTION [MZR-CD (RF Turbo)].)
6	Common rail (See COMMON RAIL INSPECTION [MZR-CD (RF Turbo)])
7	Suction control valve (See SUCTION CONTROL VALVE INSPECTION [MZR-CD (RF Turbo)])
8	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]) (See SUPPLY PUMP INSPECTION [MZR-CD (RF Turbo)])

Fuel tank side

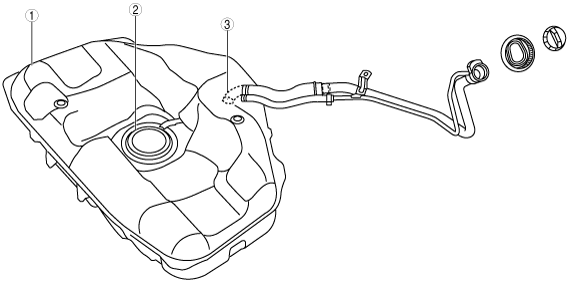

am6zzw00003160

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]) (See FUEL TANK INSPECTION [MZR-CD (RF Turbo)])
2	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)
3	Nonreturn valve
