FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]
id0114f1777800
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
2. Remove the battery and tray. (R.H.D.) (See BATTERY REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
3. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZR-CD (RF Turbo)].)
4. Remove in the order indicated in the table.
L.H.D.

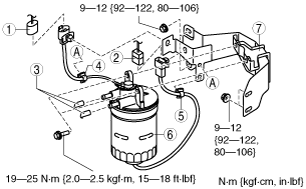

am6zzw00003157
|
|
1
|
Connector (with fuel warmer)
|
|
2
|
Connector
|
|
3
|
Fuel hose
|
|
4
|
Clip (with fuel warmer)
|
|
5
|
Clip
|
|
6
|
Fuel filter component
|
|
7
|
Fuel filter bracket
|
R.H.D.
am6zzw00003158
|
|
1
|
Fuel hose
|
|
2
|
Fuel filter bracket
|
|
3
|
Fuel filter component
|
5. Install in the reverse order of removal.
6. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZR-CD (RF Turbo)].)
7. Start the engine and verify that fuel does not leak from the fuel system.
Fuel Filter Bracket Removal Note (R.H.D.)
1. Remove the fuel filter bracket and fuel filter as a single unit.
2. Remove the fuel filter brackrt from the fuel filter.
