EMISSION SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0116f1803700

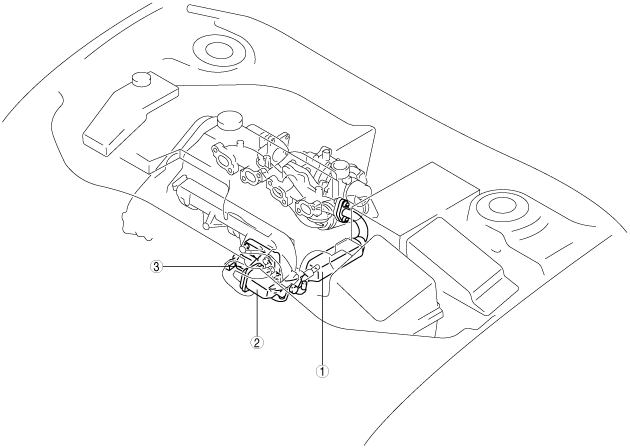

Engine Compartment Side

am6zzw00003377

1	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
2	Intake shutter valve (See INTAKE SHUTTER VALVE INSPECTION [MZR-CD (RF Turbo)].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See EGR VALVE INSPECTION [MZR-CD (RF Turbo)].)

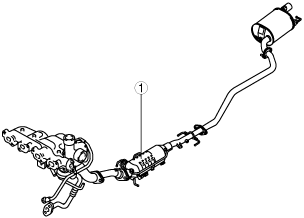

Exhaust System

am6zzw00003378

1	Oxidation catalytic converter (built-in diesel particulate filter)

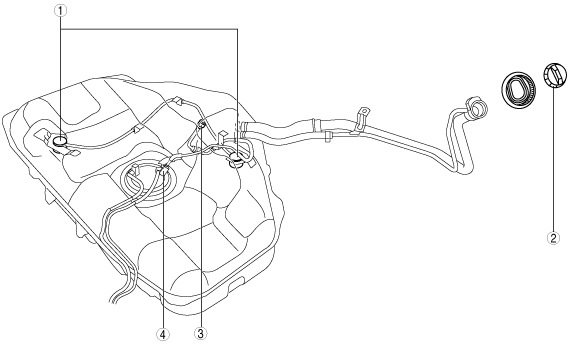

Fuel Tank Side

am6zzw00003761

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See ROLLOVER VALVE INSPECTION [MZR-CD (RF Turbo)].)
2	Fuel-filler cap
3	Check valve (two-way) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR-CD (RF Turbo)].)
4	Evaporative chamber (See EVAPORATIVE CHAMBER INSPECTION [MZR-CD (RF Turbo)].)
