KNOCK SENSOR (KS) REMOVAL/INSTALLATION [L8, LF, L5]

id014046802900

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)

3.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L5].)

4.  Disconnect the KS connector.

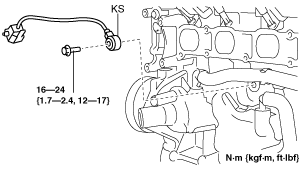

5.  Remove the KS.

am5ezw00001549

6.  Install in the reverse order of removal.
