AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR-CD (RF Turbo)]

id0140f1899600

Note

•  Before performing the following inspection, make sure to follow the troubleshooting flowchart.

Sensor Output Value Inspection

1.  Warm up the engine to normal operating temperature.

2.  Using the M-MDS, monitor the following:

―  Vehicle speed (PID: VSS)

―  Engine speed (PID: RPM)

―  A/F sensor current (PID: O2S11)

3.  Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.

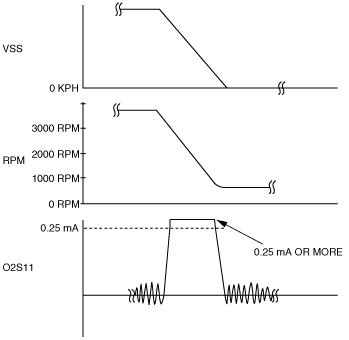

4.  Verify that the A/F sensor current (PID: O2S11) is 0.25 mA or more while decelerating as shown in the figure.

am3zzw00004090

•  If not as specified, replace A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

Resistance Inspection

1.  Disconnect the A/F sensor connector.

2.  Measure the resistance between A/F sensor terminals C and D.

am6zzw00003529

•  If not within the specification, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
