FRONT STABILIZER REMOVAL/INSTALLATION

id021300800400

1. Remove the front auto leveling sensor. (Vehicle with discharge headlight system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

2. Remove the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION.)

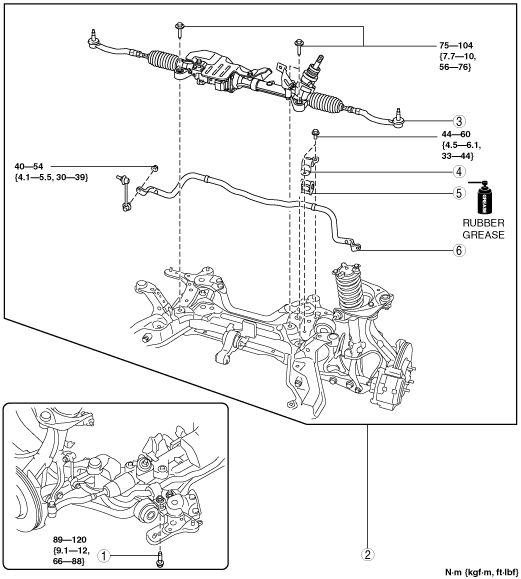

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

am6zzw00001898

Front Stabilizer Installation Note

1. Install the front stabilizer so that the identification mark faces toward the right side of the vehicle.

am6zzw00004074

Bushing Installation Note

1. Install the bushing so that the arrow faces toward the front of the vehicle.

am6zzw00004075

1	Front lower arm (rear) bolt
2	Front crossmember component (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
3	Steering gear and linkage (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [L.H.D.].) (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [R.H.D.].)
4	Stabilizer bracket
5	Bushing (See Bushing Installation Note.)
6	Front stabilizer (See Front Stabilizer Installation Note.)
