NO.2 NEITHER ABS WARNING LIGHT NOR BRAKE SYSTEM WARNING LIGHT ILLUMINATE WITH SWITCH THE IGNITION TO ON [ABS]

id0403a5891300

2	Neither ABS warning light nor BRAKE system warning light illuminate with switch the ignition to on.
[TROUBLESHOOTING HINTS] •  Malfunction of instrument cluster or ABS HU/CM •  Improper configuration (instrument cluster)

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY WHERE MALFUNCTION IS IN WARNING LIGHTS AND INDICATOR LIGHTS’ COMMON POWER SUPPLY, OR IN OTHER WARNING LIGHTS AND INDICATOR LIGHTS •  Connect the M-MDS to DLC-2. •  Turn on all warning lights and indicator lights using the instrument cluster PID WL+IL of active command modes. (See ACTIVE COMMAND MODES INSPECTION [INSTRUMENT CLUSTER].) •  Do other warning and indicator lights illuminate?	Yes	Go to Step 4.
		No	If communication error message is displayed on M-MDS screen, go to the next step. If communication error message is not displayed, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
2	INSPECT INSTRUMENT CLUSTER POWER SUPPLY FUSE •  Is instrument cluster ignition power supply fuse normal?	Yes	Go to the next step.
		No	Inspect for a short to ground on blown fuse’s circuit. Repair or replace as necessary. Install appropriate amperage fuse.
*3	VERIFY WHETHER MALFUNCTION IS IN WIRING HARNESS (BETWEEN INSTRUMENT CLUSTER POWER SUPPLY AND INSTRUMENT CLUSTER FOR CONTINUITY) OR ELSEWHERE •  Switch the ignition to ON. •  Measure voltage at instrument cluster connector (24-pin) terminal 2V. •  Is voltage approx. 12 V?	Yes	Go to the next step.
		No	Inspect for open circuit between instrument cluster and ignition. Repair or replace as necessary.

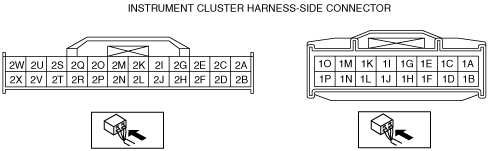

*4	VERIFY WHETHER MALFUNCTION IS IN WIRING HARNESS (BETWEEN INSTRUMENT CLUSTER AND GND FOR CONTINUITY) OR INSTRUMENT CLUSTER •  Switch the ignition to off. •  Disconnect the instrument cluster. •  Verify continuity between the instrument cluster harness-side connector terminal 2B and GND. •  Is there continuity?	Yes	Replace the instrument cluster. (open circuit in instrument cluster) (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
		No	Repair or replace malfunctioning part for open circuit and poor contact in GND point.
5	CONFIRM INSTRUMENT CLUSTER AND ABS HU/CM DTC •  Retrieve the instrument cluster and ABS HU/CM DTC using the M-MDS. (See DTC INSPECTION [INSTRUMENT CLUSTER].) (See ON-BOARD DIAGNOSIS [ABS].) •  Is there any DTC retrieved?	Yes	Perform the applicable DTC troubleshooting procedure. (See DTC TABLE [INSTRUMENT CLUSTER].) (See ON-BOARD DIAGNOSIS [ABS].)
		No	Replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
