COMBINED SENSOR REMOVAL/INSTALLATION

id041500801200

Caution

•  The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

1.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(4)  Decoration panel (SeeDECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Console (See REAR CONSOLE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

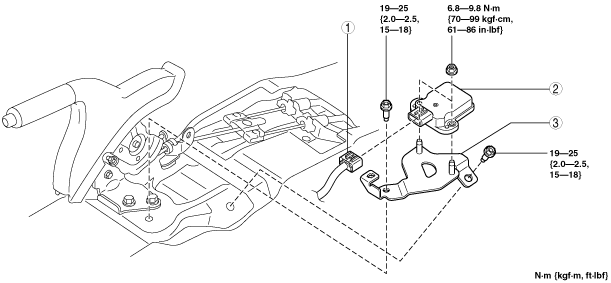

L.H.D.

am6zzw00001527

1	Combined sensor connector
2	Combined sensor
3	Bracket

R.H.D.

am6zzw00001528

1	Combined sensor connector
2	Combined sensor
3	Bracket
