TRANSAXLE RANGE (TR) SWITCH INSPECTION [FS5A-EL]

id051721800900

Operating Inspection

1.  Verify that the engine starts when the selector lever is in the P or N position only.

2.  Verify that the back-up lights illuminate when shifted to R position with the ignition at the ON.

3.  Verify that the positions of the selector lever and the indicator are aligned.

•  If there is any malfunction, adjust the TR switch. (SeeTRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FS5A-EL].)

Continuity and Resistance Inspection

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

1.  Disconnect the TR switch connector.

(1)  Disconnect the negative battery cable.

(2)  Remove the air cleaner component. (SeeINTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L5].)

(3)  Disconnect the TR switch connector.

am6zzw00001300

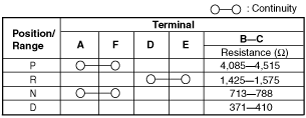

2.  Verify continuity and resistance as indicated in the table.

•  If there is any malfunction, adjust the TR switch. (SeeTRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FS5A-EL].)

am2zzw00001006

am6zzw00000335
